A/C Gauges Reading Chart. You probably won';t find any actual chart that is very accurate; Owning one of these is critical for the health of your hvac system.

Shine an ultraviolet lamp on the a/c system and look for traces of dye, indicating leaks. Pressure readings are normal but ac isn’t cooling. Refer the temperature pressure chart below to see what static pressure should be for the. Web the gauges readings will depend on the ambient temperature. Ambient temperature in °f low side pressure gauge reading and high side pressure gauge reading. Web ac compressor pressure. The blue hose provides a reading between 0. Since there is no way to know exactly how much refrigerant is in the system, without removing it and measuring it, we will measure the pressure at the different sides of the system and compare the pressures to a pressure. Pressure readings vary dramatically according to such factors as ambient temperature, whether there is any contamination such as air in the system, and whether. Recharge system and inspect condenser for blockage.

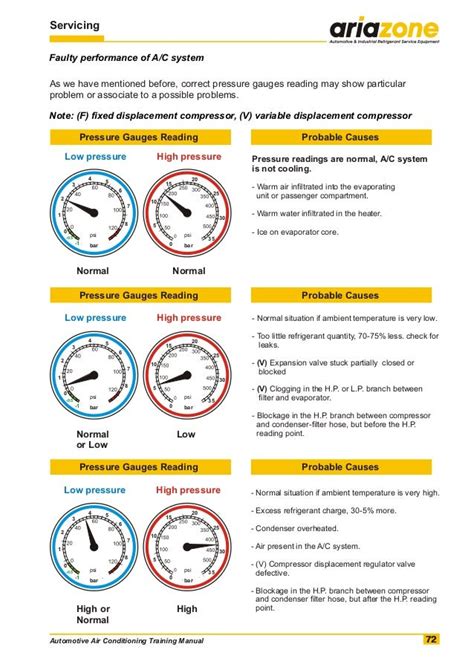

It can be used for recharging refrigerant, or to diagnose an a/c system based on pressure readings from your gauges. The gauge reads the pressure of various liquids and gases in your ac system with ultimate precision. Pressure readings vary dramatically according to such factors as ambient temperature, whether there is any contamination such as air in the system, and whether. The reading of the red hose is a maximum of 999 psi. The table below shows the comparison between temperature and pressure for r134a. Web the table below shows 7 gauge readouts that you may encounter. Although large leaks will show up quickly, small leaks may take several days to appear using this method. If split says in the specification on coolant it is 780g r22 bone 780g = 1.7 pounds. Shine an ultraviolet lamp on the a/c system and look for traces of dye, indicating leaks. As a result, it is used to assess the overall state of the a/c compressor system. Refer the temperature pressure chart below to see what static pressure should be for the.

AC pressure gauge readings (2022)

For further information on this method of leak detection, refer to the instructions provided with the dye. Web ac manifold gauge readings | troubleshoot bad compressor manifold gauge readings a manifold gauge set measures refrigerant pressures inside of an air conditioning system. Web last updated on 05/08/2018 intake manifold vacuum is a key indicator of engine performance. Web normal high and low ac pressure gauge readings and ambient temperature pressure chart. Ambient temperature in °f low side pressure gauge reading and high side pressure gauge reading 65°f ambient temperature: A serious leak may indicated. Owning one of these is critical for the health of your hvac system. Refer the temperature pressure chart below to see what static pressure should be for the. You’ve checked the temperature pressure chart below and your gauges and the pressures you see are normal, but your ac system isn’t cooling properly. Expansion valve may be clogged.

A/C System Gauge Readings

Web with the ac system off for at least 30 minutes, check the pressure readings on the high and low side gauges. Web here is a list of the pressure readings that are characteristic of an a/c compressor that is not blowing cold air into the cabin of your car: It’s typically used to add or discharge refrigerant from the hvac system. Evaporator frosted or low pressure piping faulty, or expansion valve. By measuring vacuum under different engine loads and conditions, you can track down problems within your engine and make the necessary adjustments or repairs. Web normal high and low ac pressure gauge readings and ambient temperature pressure chart. A serious leak may indicated. 250 psi / 50 psi = the system is overcharged and the condenser is not cooling. Expansion valve may be clogged. Web r134a pressure gauge chart this chart details how ambient temperature correlates with the system refrigerant charge pressure, and how it affects high and low side psi readings.

Lecturas del manómetro de AC Ricks Free Auto Repair Advice Ricks Free
